Project Overview

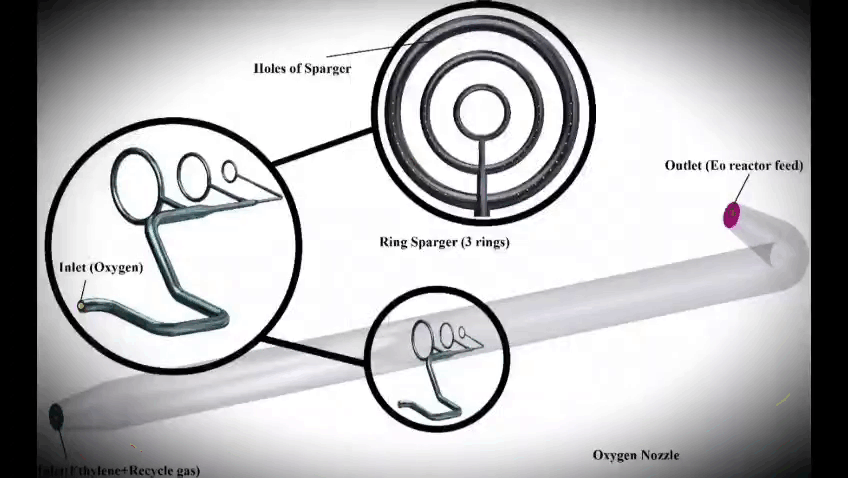

- Target: Verify accurate sizing and optimize oxygen injection nozzles for a Monoethylene Glycol (MEG) unit capacity expansion project at the Marvarid Petrochemical Complex.
- Approach: Conducted 3D turbulent gas mixing CFD simulations across extreme operating envelope thresholds (Start of Cycle and End of Cycle catalyst conditions) and validated models using plant operational data.
- Achievements: Demonstrated a capacity enhancement that increased mixing tube outlet velocity by 7 m/s while maintaining a robust 99% oxygen mass fraction uniformity index at the outlet and improving velocity uniformity by 3.5%.
| Operating Condition | Configuration | Velocity Uniformity (%) | O₂ Mass Fraction Uniformity (%) |
|---|---|---|---|
| Start of Cycle (SOC) | Original Model | 85.0 | 99.0 |
| Re-Impelled Model | 88.5 | 99.0 | |
| End of Cycle (EOC) | Original Model | 81.0 | 99.0 |
| Re-Impelled Model | 84.5 | 99.0 |
SOC Velocity Uniformity
+3.5%
Improvement
EOC Velocity Uniformity
+3.5%
Improvement
Outlet Velocity Increase
+7 m/s
Capacity Impact
O₂ Uniformity Index
99%
Maintained Quality
