Project Overview
- Target: Evaluate and implement process capacity debottlenecking for four critical industrial centrifugal pumps (P-202, P-204, P-401, and P-604).

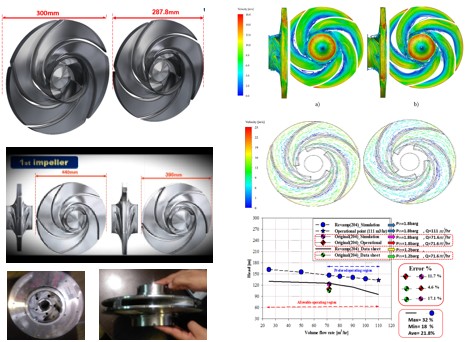

- Approach: Modeled 3D rotating reference frames and flow fields using ANSYS CFX to systematically generate complete head, power, and efficiency curves for redesigned impellers featuring optimized blade geometries and expanded diameters.
- Achievements: Confirmed complete head delivery compliance across all units, proving that targeted impeller replacement delivers substantial flow rate increases ranging from 10.6% to 59.6% without needing full pump casing replacements.
| Pump ID | Flow Rate (m³/h) | Head (m) | Flow Increase (%) | Head Increase (%) |
|---|---|---|---|---|
| P-202 | 117.0 | 65.6 | 59.6 | 28.9 |
| P-204 | 111.0 | 133.0 | 55.0 | 8.1 |
| P-604 | 200.0 | 106.1 | 10.6 | 6.3 |
| P-401 | 335.3 | 596.3 | 30.2 | 29.9 |
